Orange5 is a professional programming
device for memory and microcontrollers.
Unique feature of the current series programmers is built-in macrolanguage for writing down protocols, which
gives fast and easy capability to add new types of microschemes, precisely meeting manufacturers' requirements to read/write algorithms.

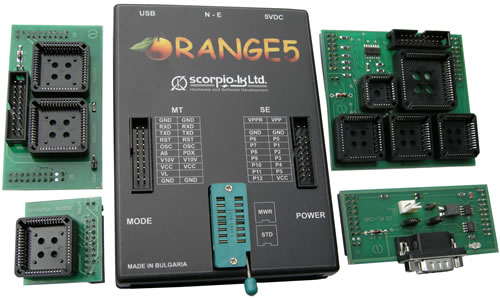

Orange 5 base set- 350 EURO whitout including VAT

Additional Adapters for Orange 5

Additional Software for Orange 5









Technical Info

- USB power supply (USB2.0/3.0).
- Universal easy to plug panel ZIF16 for EEPROM
- Control of contacts in the sockets
- Two expansions compatible with Orange4 and Omega MTRK
- Protection against overcurrent
- Overload voltage protection
- Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
- Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V),
additional static 10V for microcontrollers.
- High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
- Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment.
- Capability of functional emulation of class CDC USB devices.
- Built-in 32-bit virtual machine
- Supported interface: I2, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter).
- Programmer is encolsed in a functional box.

Supported working under the following Operational Systems:

                                Windows XP/7 32bit
                                        Windows 7/8/8.1/10 64bit



    Orange-5 Adapters Schematics

    CnCterm - Terminal program for work with COM ports.

    O5Tool - Set of additional tools

    Logotypes

    Orange-5 Chiplist
