Orange 5 Additional Adapters

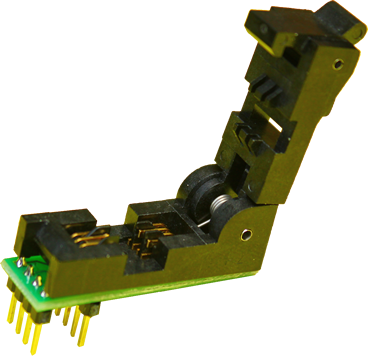

Adapter SOIC8-DIP8 Expert



Adapter for microschemes in SOIC8-DIP8 Expert body with width 150mil







Adapter SOIC8-DIP8



Adapter for microschemes in SOIC8-DIP8





Adapter SOIC8 14 93Cxx



Adapter for SOIC8 and SOIC14(93Cxx) by soldering






Adapter SSOP8/DIP8



Adapter for microschemes in SSOP8/DIP8 body (by soldering)





Adapter SPI FLASH 25Fxx NEW



Adapter SPI FLASH 25FXX in body SOIC8 and SOIC16 (by soldering)












Lead whith clips POMONA SOIC8 & DIP8



Lead whith clips POMONA SOIC8 & DIP8

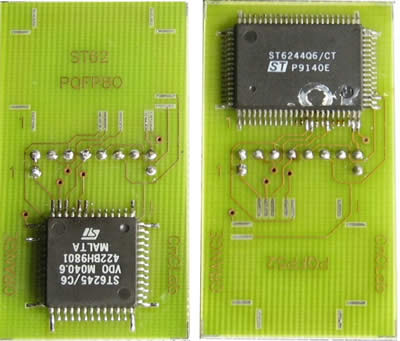

Adapter ST62xx PQFP52 PQFP80



Adapter for microcontrollers ST62xx (by soldering)





Adapter MDA2061;MDA2062



Adapter MDA2061;MDA2062





Adapter 05L28/05B



Apdapter for micro-controllers MC68HC05L28(SDIP56) and MC68HC05B6/B8 in DIP48 and SDIP56 bodies


Adapter 908AS60/AZ60 QFP64



Adapter for microcontrollers 908AS60/AZ60 in body QFP64 (by soldering)



Adapter 68HC(7)05P3/E6



Apdapter for micro-controllers MC68HC705E6/HC05P3/HC705P3 in SOIC28 and QFP44 bodies (by soldering)


Adapter 05B/X_705B/X QFP64 ROM write



Adapter for MC68HC(7)05B16/32,MC68HC05X16/32 in body QFP64 (by soldering) ROM write

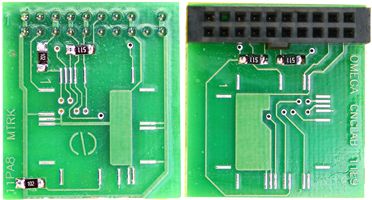

Adapter 11PA8/11E9 QFP64



Adapter for MC68HC11PA8 and
MC68HC11E9 in body QFP64 (by soldering)




Adapter 68HC05H12



Adapter for microcontrollers 68HC05H12 PLCC52

Adapter MC68HC(7)11EA9



Adapter for microcontrollers MCHC(7)11EA9 in body PLCC52


Adapter 908AS60 PLCC52



Adapter for microcontrollers 908AS60 (08AS20) PLCC52


Adapter 912Dxx QFP80/912 QFP112



Adapter for MC912Dxxx QFP80,QFP112 (by soldering) 68HC912D60(A),68HC912DG128(A),68HC912DJ128,68HC912DT128.



Adapter 9S12Dxx QFP80/9S12 QFP112
Adapter for MC9S12Dxxx QFP80,QFP112 (by soldering) 9S12A64,9S12D64,9S12A128,9S12B128,
9S12DB128,9S12DG128,9S12Dj128,9S12DT128,
9S12DJ256,9S12DG256,9S12DP256,9S12DP256,
9S12DT256,9S12DP512,9S12DT512,9S12XD128,
9S12XDG128,9S12XDG256,9S12XDT256,9S12XDT384,
9S12XDG512







Adapter 912B32 QFP80



MC68HC912B32, MC68HC12BE32, MC68HC12BC32, MC68HC912BC32, MC68HC912BD32 QFP80 (by soldering)








Adapter 9S12X QFP80/QFP112



Adapter 9S12H/HZ/XHZ QFP80/QFP112 (by soldering)
9S12H128,9S12HZ128,9S12H256,9S12HZ256,
9S12XHZ256,9S12XHZ512..








Adapter MC68HC11F1 PLCC68



Adapter for MC68HC11F1 in body PLCC68


Adapter 68HC11L6  MC68HC11L6



Adapter 68HC11L6  MC68HC11L6






Adapter 68HC11KA4 MC68HC11Kx



Adapter 68HC11KA4 MC68HC11Kx

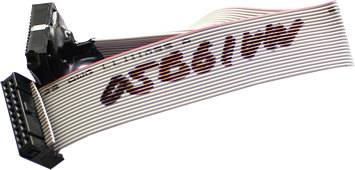

Lead 05B6 WDT VW immo incircuit



Lead 05B6 WDT VW immo incircuit






Lead 11E9(20) with power



Lead 11E9(20) with power

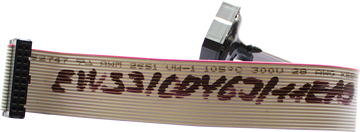

Lead for EWS3 mask 0D46J



Lead for EWS3 mask 0D46J

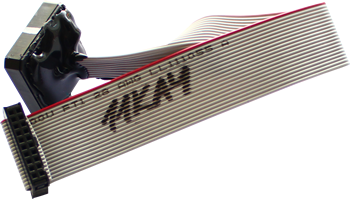

Lead 11KA4 with power



Lead 11KA4 with power






Lead 912 (9S12) incircuit



Lead 912 (9S12) incircuit







Lead 908 (08) incircuit



Lead 908 (08) incircuit

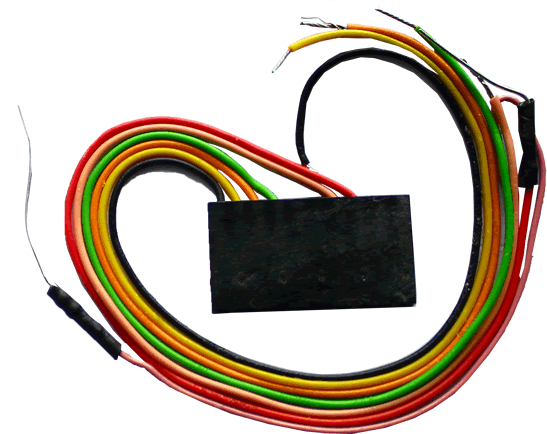

Lead 705E6 incircuit



Lead 705E6 incircuit






Adapter TMS374



Adapter TMS374C003A,TMS374CD13A



PLCC Extractor



Extractor for micro-controllers in PLCC socket





Adapter ISO keycard



Adapter ISO keycard



Adapter 68HC11KA4 PLCC68



Adapter 68HC11KA4 in body PLCC68




Adapter NAND Flash



Adapter for NAND Flash Samsung, Hynix... in cases TSOP44, TSOP48. Double-sided , soldered. Connects to Orange-5




Adapter NDM457

Adapter NDM457

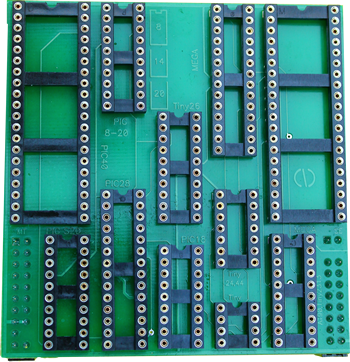

Adapter PICAVR

Adapter Microchip PIC12,PIC16 and Atmel AVR

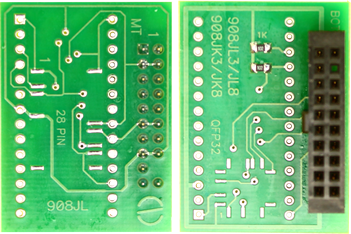

Adapter 908JL

Adapter 908JL
Supports:
MC68HC908JL3,MC68HC908JL8
MC68HC908JK3,MC68HC908JK8

DIP28 panel or SOIC28 by soldering.
QFP32 by soldering (on the down side)












Adapter PCF 7941

Adapter PCF 7941
Supports:
PCF 7941 (by soldering)









Adapter MSP430F

Universal adapter MSP430F

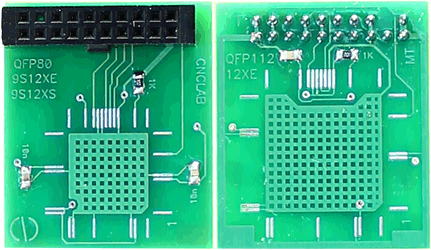

Adapter 9S12XE

Adapter 9S12XE is used for microcontrollers 9S12XEP,XEQ,XS
in QFP80, QFP112 body (by soldering)

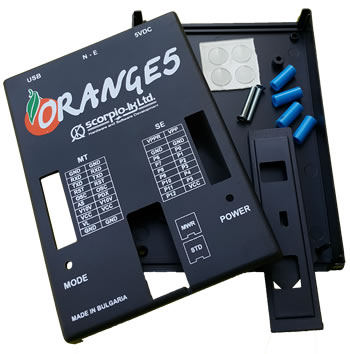

Orange-5 box renewal kit

Orange-5 renewal kit
